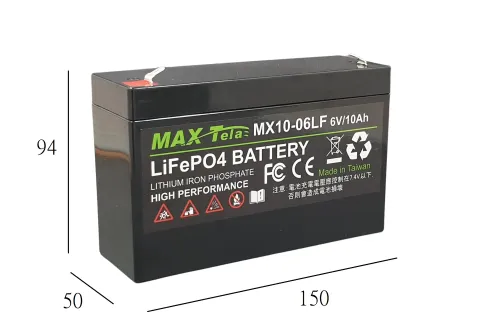

Maxtela 6V 10Ah LiFePO4 Battery, MX10-06LFM



Maxtela ELB LiFePO4 battery series is designed to be powerful to suit various smaller deep cycle applications, such as alarm systems and electric bicycles. The MX10-06LF is a lithium iron phosphate (LiFePO4) battery offering more power and less weight compared to the battery corresponding to lead-acid. LiFePO4 batteries also provide 10x longer life than lead-acid batteries, making such battery the best choice when draining the energy for the deep-cycle applications

Maxtela 6V lithium batteries are featured to offer more energy for high consumption than conventional 6V lead-acid batteries. 100% maintenance-free and is extremely safe to operate, even in an unventilated battery box. Making it the perfect battery for applications requiring stable power, including Alarm Systems, Emergency Lightings, Electric Bicycles, Ride-on Toys, and much more.





 ‧ Lightweight, high-performance, safe and reliable lithium battery, especially developed for replacing lead-acid battery.

‧ Maxtela ELB LiFePO4 Battery Series intelligently protect against over-discharge, over-charge, polarity-reverse, low-voltage and short-circuit.

  ‧ LiFePO4 Batteries can be discharged to 100% and also can be discharged at a high rate of up to 1C for most of models while maintaining a high energy capacity.

  ‧ More than 2,500 cycles at a depth of discharge of 80%, which compared to lead-acid batteries' utility is higher than up to 10 times more of cycle life.





Nominal Voltage:                    6.4V

Rated Capacity:                      10Ah

Stored Capacity:                     64Wh

Cell Type:                               LiFePO4

Cell Voltage:                           3.2V

Charge Voltage:                     7.4 V max

Recommended Discharge      5.4V

Cut-off Voltage:

BMS:                                       YES

Charge Mode:                         CC/ CV

Self Discharge Rate:               ≤3% /month

Charge Temperature:              0°C~ 45°C(32°F~113°F)

Discharge Temperature:         -20°C ~ 60°C (-4°F~140°F)

Discharge Humidity:               RH ≤ 85%

Storage Temperature:             -10°C ~ 40°C (14°F~104°F)

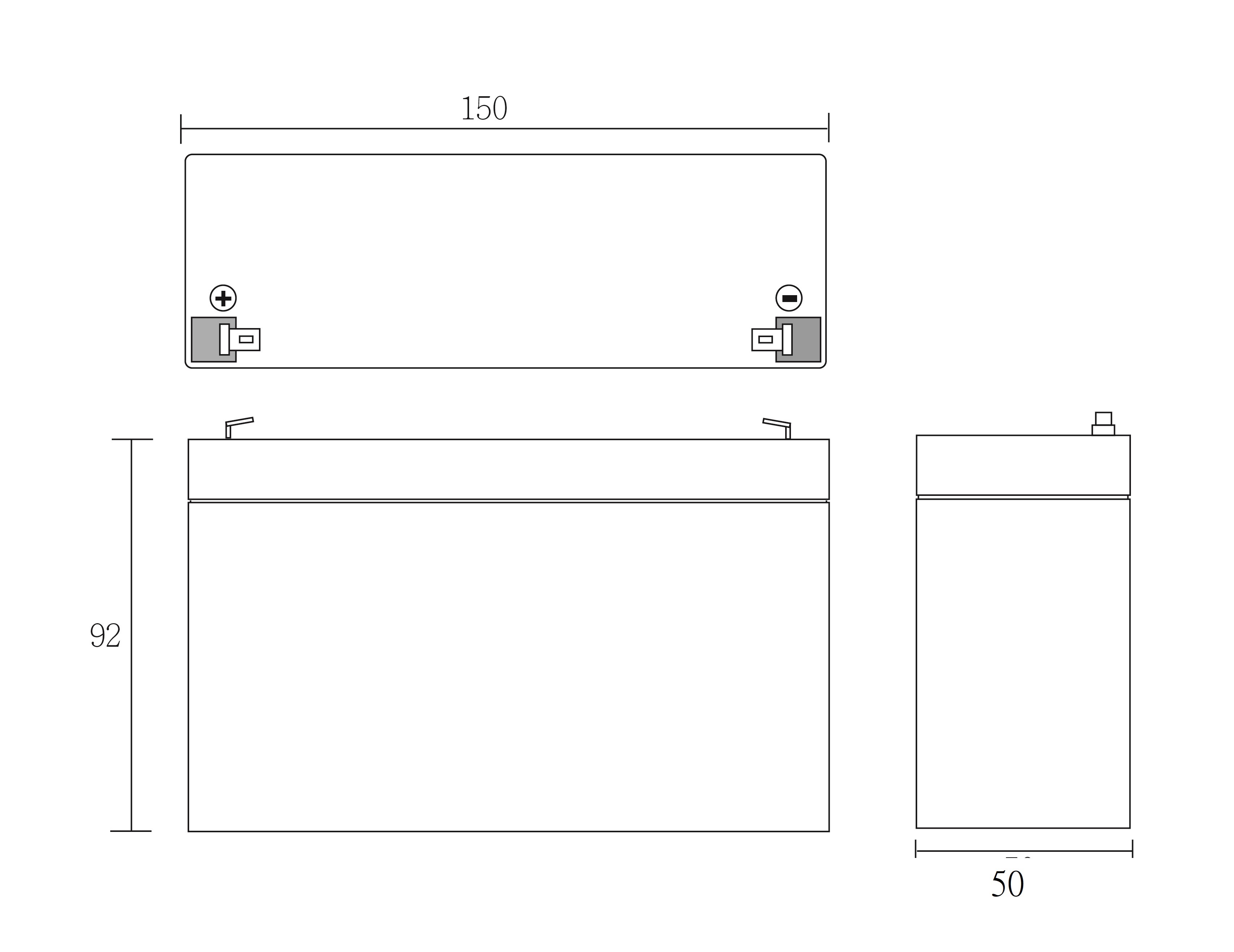

Dimension (Lx Wx H):          151x50x94mm/5.94”x 1.97”x 3.7”

Weight:                                    795g (28.1 oz)

Terminal Type                         T2 FASTON TYPE
